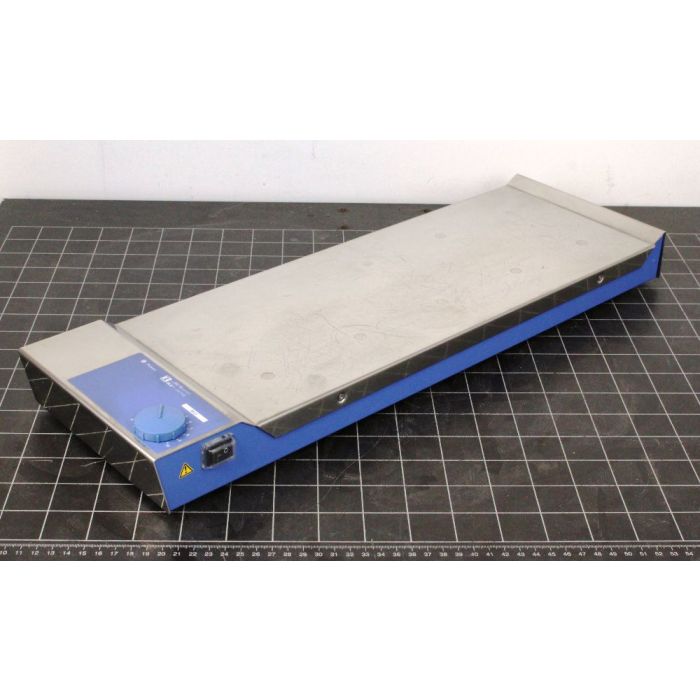

IKA R010P Magnetic Stirrer

Multi-position magnetic stirrer with 10 stirring positions, without heating. The stainless steel surface covers the unit allowing easy cleaning and providing protection against the penetration of liquids.

Number of stirring positions 10
Stirring quantity max. per stirring position (H2O)  [l] 0.4
Stirring position distance  [mm] 90
Speed deviation of individual stirring positions  [%] 5
Stirring quantity max. (H2O)  [l] 4
Motor rating input  [W] 14.4
Motor rating output  [W] 3.6
Speed range  [rpm] 0 - 1100
Stirring bar length max.  [mm] 30
Speed control scale 1-10
Set-up plate material stainless steel 1.4301
Set-up plate dimensions  [mm] 180 x 450
Dimensions (W x H x D)  [mm] 182 x 65 x 552
Weight  [kg] 3.2
Permissible ambient temperature  [°C] 5 - 40
Permissible relative moisture  [%] 80
Protection class according to DIN EN 60529 IP 42
Voltage  [V] 230
Frequency  [Hz] 50/60
Power input  [W] 20

Serial# 01.726840
