HANNA HI9835 conductivity/TDS Meter

HANNA HI9835 conductivity/TDS Meter



With Manual and probe



Waterproof conductivity meter to measure conductivity, TDS, salt content and temperature



With the ATC HI 9835 conductivity meter you can measure conductivity in µS/cm or in  ppm (mg/l TDS measurement field), salt content (NaCl) in % and temperature. With the ATCHI 9835 conductivity meter all measurement values can be represented with automatic or manual temperature compensation. The ATC HI 9835 conductivity meter can have atemperature coefficient between 0,0 y 6,0%  and the TDS can be regulated between 0,80 (F1) and 0,40 (F2). The ATC HI 9835 conductivity meter is composed by a waterproof body

which can be both used in the countryside or in the laboratory.



- rubber coated buttons
- waterproof
- replaceable electrode
- large display
- good quality



Technical specifications



Measurement fields



Temperature
0,0...+ 60 °C



EC conductivity
0,00...29,99 µS/cm;   30,0...299,9 µS/cm
300...2999 µS/cm;  3,00...29,99 mS/cm
30,0...200,0 mS/cm;  200,0...500,0 mS/cm



TDS salt content
0,00...14,99 ppm (mg/l); 15,0...149,9 ppm (mg/l)
150...1499 ppm (mg/l);   1,50...14,99 ppt (g/l)
15,0...100,0 ppt (g/l);   100,0...400,0 ppt (g/l)



NaCl
0,0 ... 400,0 %



Resolution Temperature 0,1 °C



EC conductivity
0,01 µS/cm; 0,1 µS/cm; 1 µS/cm;
0,01 mS/cm;   0,1 mS/cm



TDS salt content
0,01 ppm; 0,1 ppm; 1 ppm; 0,01 ppt; 0,1 ppt



NaCl 0,1 %



Accuracy (at 20°C)
     Temperature
     EC conductivity
     TDS salt content
     NaCl



± 0,4 °CC
+- 1 % of the indicated value
+- 1 % of the indicated value
+- 1 % of the indicated value



Calibration
Temperature
EC conductivity
TDS factor
NaCl




2 points calibration
1 point (with 6 registered buffers)
adjustable between 0,40 and 0,80
1 point with optional solution (HI 7037)



Temperature compensation automatic or manual 0...60 °C



Electrode HI 76309; for rings probe with built-in thermal sensor connected to a 1m cable



Power supply 4 x AA  1,5 v batteries (150 h)



Auto shut-off after 5 min.  (it can be disabled)



Operating conditions 0...50 °C 100 % HR



Dimensions 196 x 80 x 60 mm



Weight 500 g



Serial# 379359

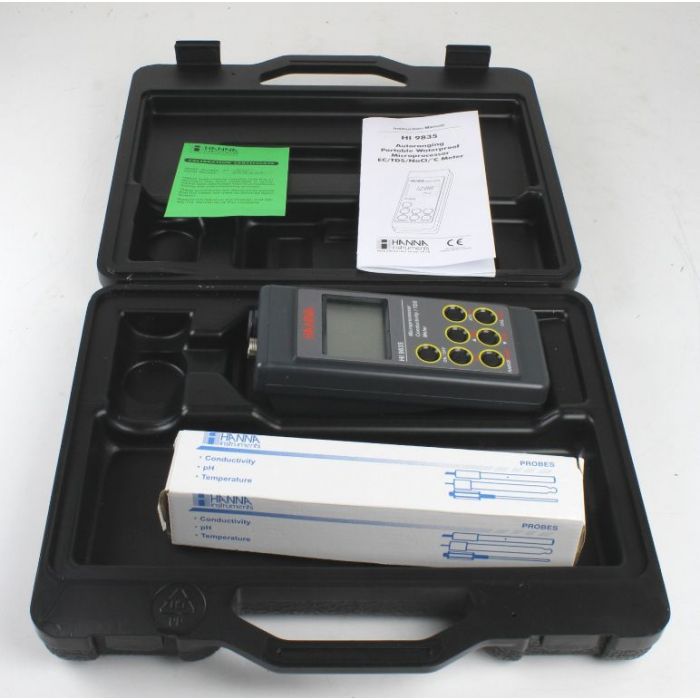

1 x  HI 9835 conductivity meter
1 x HI 76309 conductivity probe
4 x batteries
1 x user's manual
