Benchtop isolator based on VarioControl technology.

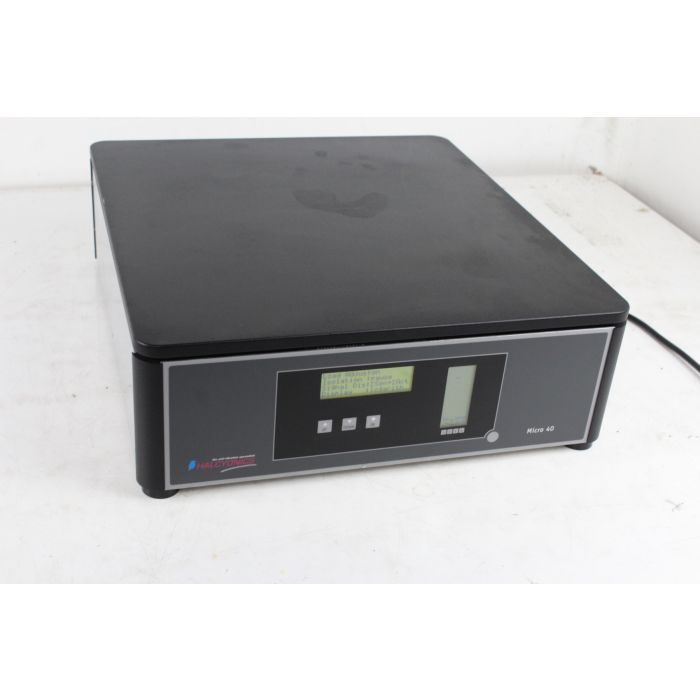

Micro 40 is a Halcyonics' intelligent benchtop solution which is the cost-effective active
vibration isolation systems for various smaller applications. Based on Halcyonics proven VarioControl
technology, the new benchtop unit now offers the convenience of a digital easy-to-navigate
menu. VarioControl units offer two digital displays; one for menu navigation and a second to obtain
additional information on current vibration levels. Vibration signals of sensors and actuators
can be chosen and visualized as graphical bars. The user therefore always obtains summarized
information on the current vibration condition of his or her application.
Micro 40 and 60 systems feature an automated transport locking mode and fully automatic load
adjustment; they take only a few seconds to start up. There is no further adjusting or tuning required.
Thus, the Micro 40 and 60 systems feature ideal portability for field measurements and
presentations.
In addition to their high isolation from floor vibration through AVI (active vibration isolation), Micro
40 and 60 systems also dampen application-generated vibration by AVC (active vibration control),
e.g., this technology isolates vibration caused when the user touches the equipment. Thanks
to Micro 40, active vibration isolation takes effect right at 0.6 Hz and considerably increases from
this frequency upward. Above 10 Hz, Halcyonics Micro 40 and 60 systems achieve an isolation of
40 dB. A major advantage of active Halcyonics systems is that they do not have any natural lowfrequency
resonance, which is responsible for problems encountered with passive vibration isolation
systems in low-frequency ranges below 5 Hz. Micro 40 and 60 systems isolate vertical and
horizontal vibration as well as vibration generated around the vertical axis of rotation as well as
both horizontal axes of inclination. The degree of freedom of the active isolation system is thus
six.

Specification:
Frequency Range: 0.6 Hz – ∞
Isolation Performance: > 5 Hz = 25 dB > 10 Hz = 40 dB
Isolation technology: Active stages, 8 coaxial integrated sensor/actuator axes.
Sensors: Piezo-electric acceleration detectors.
Actuators: Electro-dynamic actuators.
Correction Forces: Vertical: ± 8 N Horizontal: ± 4 N
Control Electronics: Easy-to-navigate menu for all settings, second graphics display for vibration levels.
Maximum Load: 220 lbs

Power Requirements: 100-250 V AC

Serial No: Micro40 -FG-558

Dims: W45 x D41 x H14 cm
