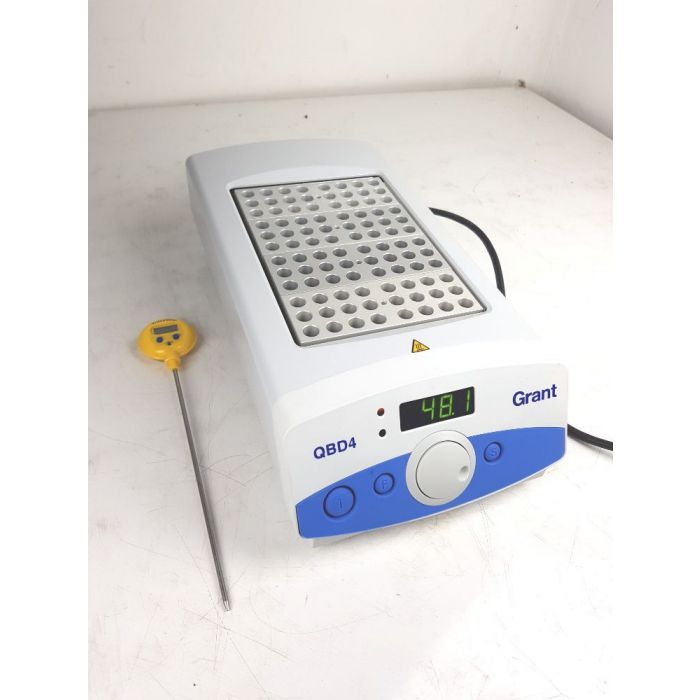

Grant Instruments QBD4 Digital Dry Block Heater

Grant Instruments QBD4 Digital Dry Block Heater
Ambient +5 to 130°C, 4 off QBE1 Blocks 11mm Dia holes.
Holds 4 interchangeable blocks.


Dimensions (h x d x w)            120 x 390 x 200mm
Temperature range @37°C            Ambient +5 to 130°C
Stability @37°C    0.1±ºC
Uniformity within the block @37°C    0.1±ºC
Uniformity across similar blocks @37°C    0.2±ºC
Temperature display
Display resolution            0.1°C
Heat up time 25ºC to 100ºC        20 minutes
Three programmable temperature/ time segments plus end-of-program segments    -
Reaction timer, with audible buzzer    1 to 999 minutes
Function timer for delay of heater start-up/switch-off    Up to 72 hours
Off-set adjustment
Two-point calibration of internal and external probes
High/low temperature alarms, settable to within 0.5ºC of set temperature
Fault indication display.

with Block removal tool

Safety    Thermal fuse
Heater power - 230V    600W
Weight    3.6kg

Serial no: J31732001
