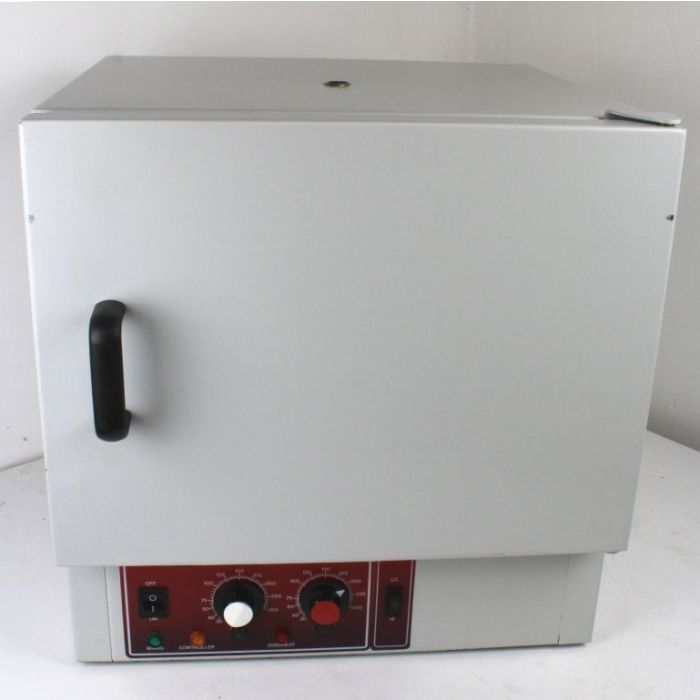

Genlab MINIS/30 Dual Purpose Oven/Incubator

Genlab MINIS/30 Dual Purpose Oven/Incubator



The GENLAB Dual Purpose Oven & Laboratory Incubator combines the advantage of two temperature ranges in one unit through the use of a simple high/low switch.
Higher temperatures for oven or steriliser use on the high setting and standard incubator settings on the low range.




Features



 Temperature range:   Ambient +5º to 250ºC (Dual Range)
 Fluctuation +/- 0.25ºC @ 37ºC  +/- 0.75ºC @ 100 ºC
 Easy clean powder coated body
 Aluminium coated mild steel chamber
 Direct reading thermostat
 Safety overheat thermostat
 C.E. compliant



Dual Purpose Oven/Incubators



This cost effective, dual purpose oven/incubator combines the advantage of two temperature ranges in one unit through the use of a simple high/low switch.
Higher temperatures for oven or sterilise use on the high setting and standard incubator settings on the low range.
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD)
Fitted with fixed shelf runners and removable plated wire grid shelves.
The vertical style units are fitted with the controls below the door



Heating
Heated by Incoloy sheathed elements; positioned below the chamber floor for natural convection units and fitted around the fan on the back or side wall of the chamber for mechanical convection units.



Controls
The control system comprises of a direct reading thermostat and overheat thermostat both with calibrated scales and tamper proof locks. They also include main switch with indicator and heat and overheat indicators.



Capacity (litres) 30
Internal dims. (H x W x D cms) 24 x 36 x 35
External dims. (H x W x D cms) 50 x 48 x 49



Serial# Y6B080



Note some staining on interior of unit



PDF Manual
