GE Inspections Technologies CL5 Thickness Gauge


GE Inspections Technologies CL5 Thickness Gauge

The CL5 is used for precise thickness measurements of metal, steel and plastic components whose complex geometry often makes them difficult to inspect with conventional gauges. It’s is able to display the ultrasonic response in real-time by using the optional live A-scan to properly align the transducer and verify the accuracy of the test as components become more complex in shape. The user-friendly design of the CL5 provides intuitive operation, with easy to understand on-screen prompts, with no need for dedicated keys.
This standard is in good condition. For thickness and linearity calibration of curved surfaces.

0.005 in to 20.00 in (0.13 mm to 500 mm)
Dependant on material, probe, surface condition, temperature
0.0001, 0.001, 0.01in resolution
0.03937 to 0.78736 in/μs material velocity range
2.25 × 2.56in display with backlight
Supervisor Lockout
Bi-directional serial RS-232
Baud rate 1200, 9600, 57600 & 115200 I/O
Programmable data recorder
Multi-language user interface
3 AA batteries (Alkaline, NiMH or NiCad)
Impact resistant, dust & splash proof, gasket-sealed
Case tested to IP54

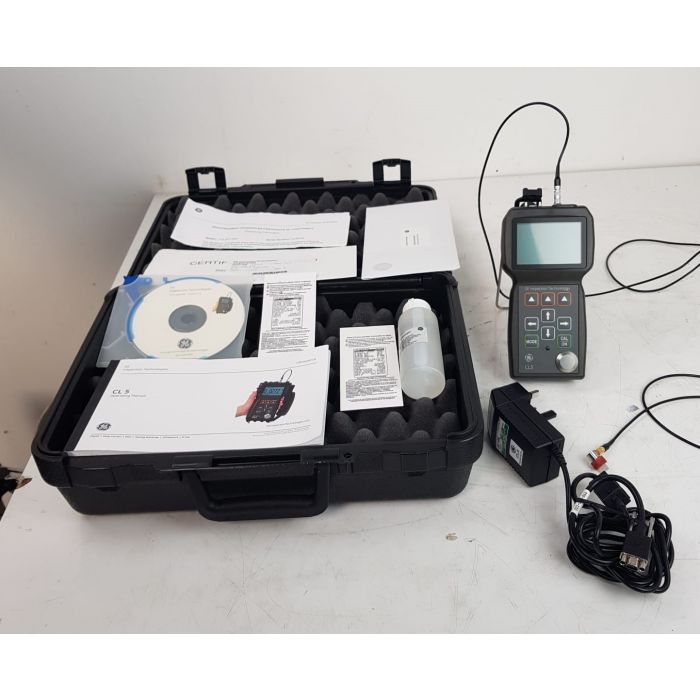

Sale includes the following items:
· CL5 ( no A-scan Live option)
· Li-Ion Battery
· Charger
· GE Transducer
· Manual
· Travel Case

Serial# 01PP05

More Information
SKU P096
Availability Out of Stock
Condition Used
