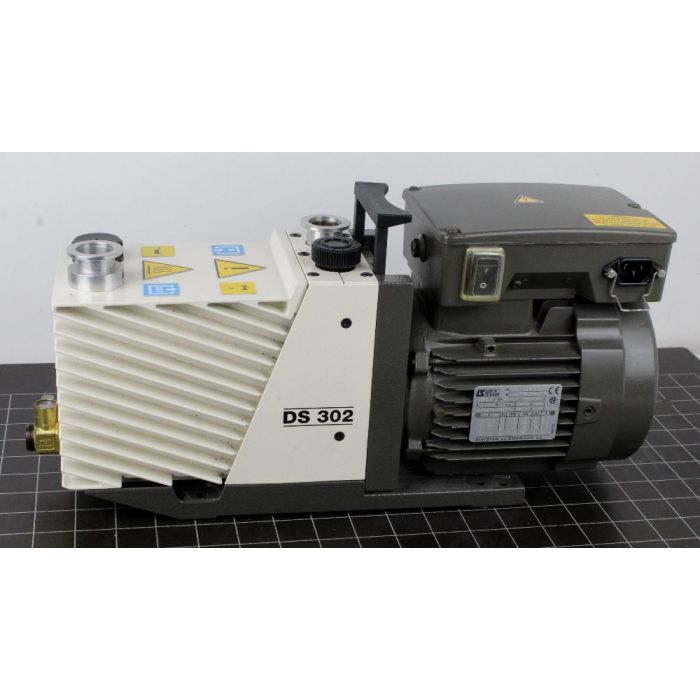

Galileo (Varian) DS302 Rotary Vane Vacuum Pump

Model 949-9325S006

Dual Stage Pump The two stage design allows low 10-3 mbar operation, low operating temperature, minimal backstreaming at low pressure, good pumping efficiency and gas ballast in the high 10-3 mbar region.

Gas Ballast Valve The opening of this valve injects air into the second stage of the pump. This action increases the temperature of the module which facilitates the outgasing and clean up of water vapor or other condensibles from the pump fluid

Free air displacement  50 Hz: 237 l/min 3 (14.2 m /h)
Pumping speed 50 Hz: 11.6 m3/h
Ultimate partial pressure 10-4mbar
Ultimate total pressure 2 x 10-3 mbar
Ultimate total pressure with gas ballast 2 x 10-2 mbar
Water vapor tolerance 20 mbar
Water vapor capacity 160 g/h
Oil capacity min/max 0.25/0.6l
Motor rating 1ph  50 Hz: 0.45 kW
Nominal rotation speed 50 Hz: 1500 rpm
Weight kg (lbs) 25 (55)
Inlet flange 25KF DN
Exhaust flange 25KF DN

Dims 47cm (D) x 14cm (W) x 21cm (H)

Serial# 237749

PDF Manual
