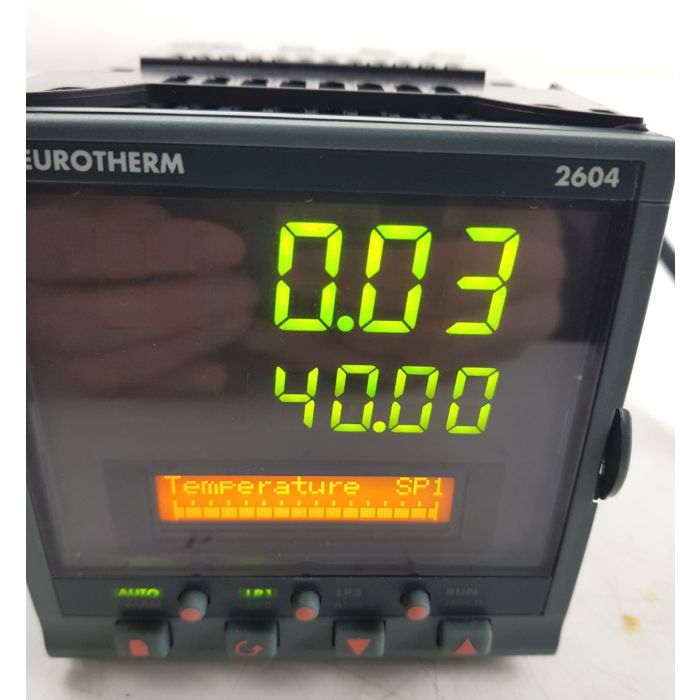

Eurotherm 2604, Advanced Process Controller / Programmer

Wanted
SKU
Q001

Eurotherm 2604, Advanced Process Controller / Programmer

Pre Owned, therefore there is a preset program already.
Data sheet available.

Description

High stability, precision and functionality
One, two or three control loops
PID, valve, ratio, cascade and override control
Setpoint programming
High speed ModBus®, DeviceNet™ and Profibus® communications
Test chambers, autoclaves, kilns, furnaces, forehearths
Melt Pressure, Carbon Potential

It employs universal inputs (TC, RTD, DC) with INSTANT ACCURACY™. Direct connection of Zirconia probes is also supported for carbon potential control in atmospheric combustion applications (heat treatment industry). The advanced control algorithm and gain scheduling gives straight line control, even in difficult non-linear applications and automatic tuning simplifies commissioning.

A setpoint programming option allows storage of up to 50 programs (500 segments, 16 digital events, gauranteed dwell, holdback) and each can profile up to three setpoints.

Using internal Toolkit blocks, including timers and totalizers, customized user configurations and special machine control applications can be created. Configuration is by the front panel or via iTools.

The 2604 is available with high speed Modbus® RTU, DeviceNet™ and Profibus®-DP (in the ‘f’ version) digital communications. The 2604 is available with powerful preprogrammed applications such as melt pressure and carbon potential.


specification:

Analogue IP/OP In 8
Analogue IP/OP Out 8
Combinational Logic 32 Operations
Control Algorithms Cascade, Override, Single, User wired
Control loops 3
Digital Comms DeviceNet, Modbus, Profibus
Digital IP/OP In 44
Digital IP/OP Out 43
Maths Equation 24 Calculations
PC Configuration Graphical wiring
Special Features Carbon Potential, Humidity, Master comms, Melt Pressure, User wiring
Timers/Counters/Totals 4 / 0 / 4


Power: 100V - 240V AC 50/60 Hz
Serial No: CX26621-001-001-01-05

More Information
SKU Q001
Availability Out of Stock
Condition Used
