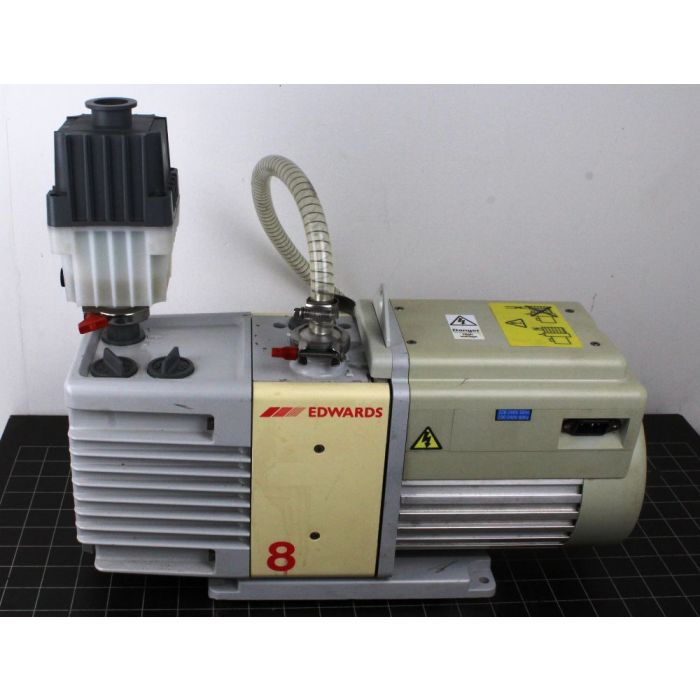

Edwards RV8 Oil Sealed Rotary Vane Vacuum Pump

These rugged vacuum pumps offer an excellent ultimate with good pumping speeds as well as superior vapour handling capabilities and quiet operation. Edwards RV series of vacuum pumps have become the industry standard with over 200,000 units sold. This success has been based on field proven design and reliability in a wide range of applications and environments.

High Vapour Handling:Quicker Process

Superior Particulate Handling:High Reliability

Fast Acting, Dependable Inlet Valve for Anti-Suck Back Protection:Safe Process & Systems

Mode Selector & Two Position Gas Ballast:Configured to Meet Your Vacuum Needs

Designed for Easy Maintenance:No Unplanned Downtime

Quiet Running:Better Work Environment

Displacement
  50Hz 9.7 m3h-1 / 5.7 ft3min-1
  60Hz 11.7 m3h-1 / 6.9ft3min-1
Speed (Pneurop 6602)
  50Hz 8.5 m3h-1 / 5 ft3min-1
  60Hz 10 m3h-1 / 5.9 ft3min-1
Ultimate pressure 2 x 10-3 mbar / 1.5 x 10-3 Torr
Ultimate pressure GB I 3 x 10-2 mbar / 2.3 x 10-2 Torr
Ultimate pressure GB II 6 x 10-2 mbar / 4.6 x 10-2 Torr
Ultimate pressure with Fomblin® 2 x 10-2 mbar / 1.5 x 10-2 Torr
Max inlet pressure for water vapour 38 mbar / 28.5 Torr
Max water vapour pumping rate – GB I 60 gh-1
Max water vapour pumping rate – GB II 220 gh-1
Max allowed outlet pressure 0.2 bar gauge / 2.8 psig
Max allowed inlet and gas ballast pressure 0.5 bar gauge / 7 psig
Motor power 50/60Hz 450 / 550W
Power connector 1-ph IEC EN60320 C13
Nominal rotation speed 50/60Hz 1500 / 1800rpm
Weight (without oil) 28 kg / 61.6 lb
Oil capacity min/max 0.45 / 0.75 litres
Recommended oil Ultragrade 19
Inlet flange NW25
Exhaust flange NW25
Noise level 48 dB(A) @ 50 Hz
Operating temperature range 12 – 40 °C

PDF Manual

Serial# 013144
