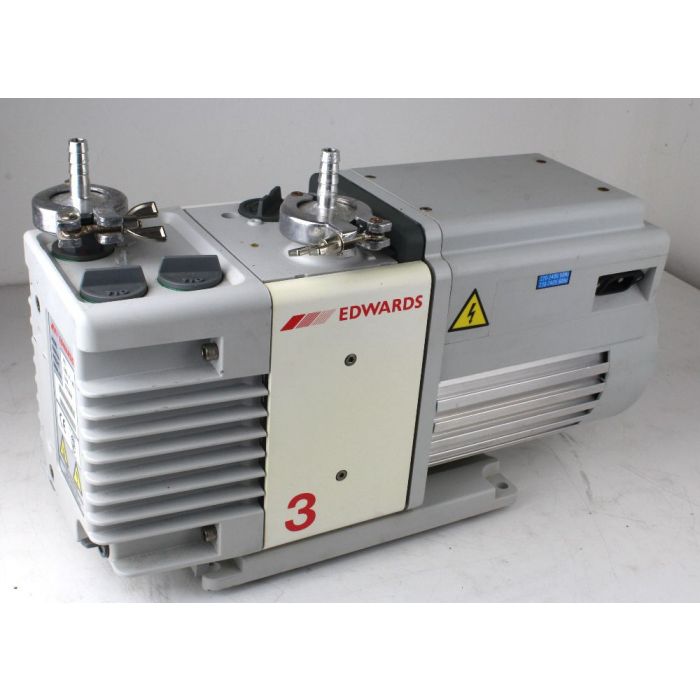

Edwards RV3 Vacuum Pump

The RV series of small oil sealed rotary vane pumps deliver excellent ultimate vacuum pressure, high pumping speeds and superior vapour handling capabilities with quiet operation. With over 300,000 units produced, these pumps offer proven performance that sets the industry standard for R&D and scientific pumping applications.

All RV pumps are approved to UL and CSA standards by an external test house and feature our unique mode selector switch, meaning one model is suitable for both high vacuum or high throughput applications. In summary, you can rest assured that when you choose an Edwards RV oil sealed rotary vane pump you are choosing a product you can rely on from a company you can trust

All Edwards RV pumps are significantly quieter – noise levels of 48 dBA 50Hz are typically half the noise of a conventional pump and have been achieved by extensive work on the drive train and motor.
The pumps have the unique ability to deliver excellent ultimate vacuum in both high vacuum and high throughput modes with or without gas ballast. This gives the user an unrivalled opportunity to select the optimum pumping performance without compromising the application.

In its high vacuum mode, the RV pump is ideal for analytical instruments, electron microscopes, physics research, backing turbo pumps and leak detection applications. Configure the same pump in the high throughput mode, and it becomes suitable for distillation, laboratory furnaces, backing vapor pumps, solvent concentration, freeze drying and other drying applications.

The simple to use mode selector and accessible, three-position gas ballast control allow the pump to be reconfigured at any time, even when the pump is running.

Applications:
Analytical instruments
Laboratory bench top vacuum
Turbomolecuar backing pumps
Freeze drying
Research and development
Centrifuges, ultra-high speed
Coating
Degassing/curing - oil, epoxy resin
Distillation/extraction/filtration
Furnaces
Gas bottle filling/emptying
Gel drying
Glove boxes, ovens
Leak detectors, Helium
Load locks and transfer chambers
Refrigeration manufacture
Rotary, centirfugal evaporators
Scanning electron microscopes - SEM
SEM/FIB (ion beam repair)
Solvent recovery
Surface science instruments
Ultimate pressure 2.0 x 10-3 mbar / 1.5 x 10-3 Torr
Ultimate pressure GB I 3.0 x 10-2 mbar / 2.3 x 10-2 Torr
Ultimate pressure GB II 1.2 x 10-1 mbar / 9.1 x 10-2 Torr
Ultimate Pressure with Fomblin® 2 x 10-2 mbar / 1.5 x 10-2 Torr
Max inlet pressure for water vapour 80 mbar / 60 Torr
Max water vapour pumping rate – GB I 60 gh-1
Max water vapour pumping rate – GB II 220 gh-1
Max allowed outlet pressure 0.2 bar gauge / 2.8 psig
Max allowed inlet and gas ballast pressure 0.5 bar gauge / 7 psig

Oil capacity min/max 0.42/0.7 litres
Recommended oil Ultragrade 19
Inlet flange NW25
Exhaust flange NW25
Noise level 48 dB(A) @ 50 Hz
Operating temperature range 12 – 40 °C

Serial# 076233628

We understand this pump has only had approx 5 hours of run time since new



More Information
SKU J346
Condition Used
