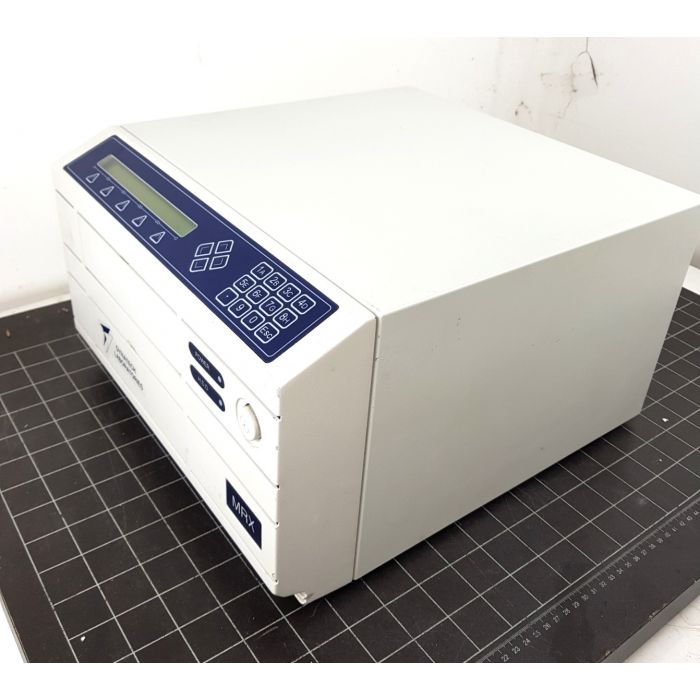

Dynex MRX Revelation Absorbance Micro Plate Reader



Built in PC with Relevation Windows Software



Microplate UV/VIS detector
The Dynex MRX TC Revelation 96-well microplate reader has a 400nm to 850nm spectral range and temperature control. 3 standard onboard filters: 340,410,450,570, 595, 650nm. Single/dual or multiple wavelength readings; dual wavelength reads in less than 6 seconds, single wavelength reads in less than 4 seconds. Accuracy: 2.5% or 0.005 OD whichever is greater (0 to 3.5 OD). Linearity: 0.000 to 2.000 OD, ±1%, and 2.001 to 3.500 OD, ±1.5%. Dynamic Range: -0.100 to 4.000 OD Endpoint, kinetic plate reads to 1000 per plate, plate shaking, calculation range. Built-in PC software for full data analysis and expanded operations.

Temperature range is ambient to 63C with stability of ±0.5C and accuracy of ±1C. Time to temperature is 8 minutes. User friendly: Create Quick Start buttons for one-touch assay analysis and GLP compliant. On-board self-diagnostics.



Keyboard and mouse and Monitor are not included. Adaptors are included for mini din and 6 pin din



The MRX TC absorbance reader is ideal for a range of research and clinical applications, including:

Enzyme Immunoassay (ELISA) for infectious diseases, autoimmune diseases
Cyclic nucleotides
Eicosanoids
Free radicals
Chemokines
Cell adhesion
Apoptosis markers
Nucleosome analysis
p53
PCR detection
RT-PCR detection



It has a Pentium 75 processor, Windows 95, and Revelation v3.04 software on the internal hard drive; no passwords needed.
The instrument passed the Revelation self-tests and appears to work fine. The software reports six filters installed: 340, 410, 450, 595, 570, 650 nm.



Serial: 2CXB2228
Power: 100V to 240V 50/60Hz
Dimensions:D39 x W36 x H22 cm
Weight: 13Kg



PDF Manual
