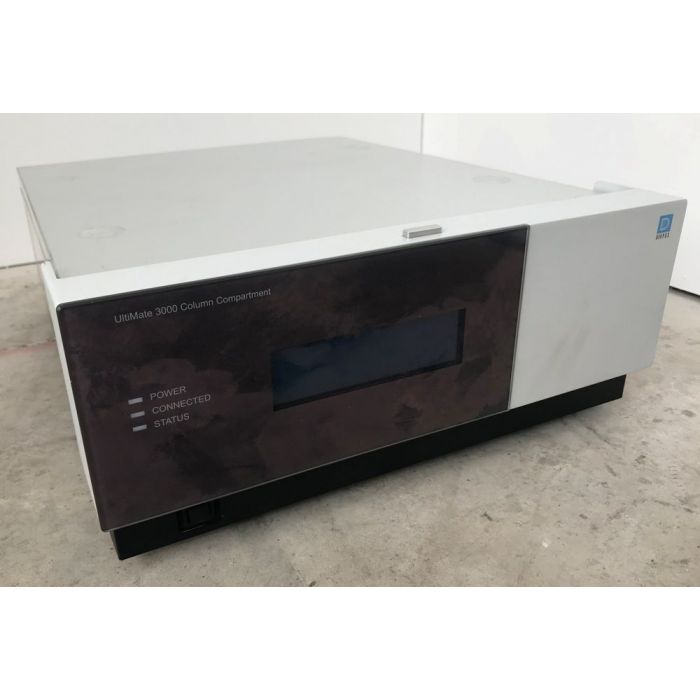

Dionex Ultimate 3000 Column Compartment

Dionex Ultimate 3000 Column Compartment
Model 5722-0000
The TCC is a modern high-quality instrument designed for HPLC analysis, especially as part of the Dionex UltiMate 3000 system. The design has been optimized for minimum dead volume and maximum efficiency.

Temperature range: 5 °C to 85 °C (max. 18 °C below ambient)
Temperature accuracy: ±0.5 °C
Temperature stability: ±0.1 °C
Temperature precision: ±0.1 °C
Column capacity: Up to 6 columns, max. 30 cm length
Heatup time: Typically 15 minutes 20 °C to 50 °C
Cooldown time: Typically 18 minutes 50 °C to 20 °C
Control: All functions software controlled via USB
I/O interfaces: 2 digital inputs, 2 programmable relay outputs
Switching valves: 1 or 2 thermostatted valves (2-position, 6-port, 2-position, 10-port, or 6-position, 7-port)
Serial 3820602
As per the images we have available a range of Dionex instruments to build a full HPLC system, please see our other listings
More Information
SKU L131
Availability Out of Stock
Condition Used
