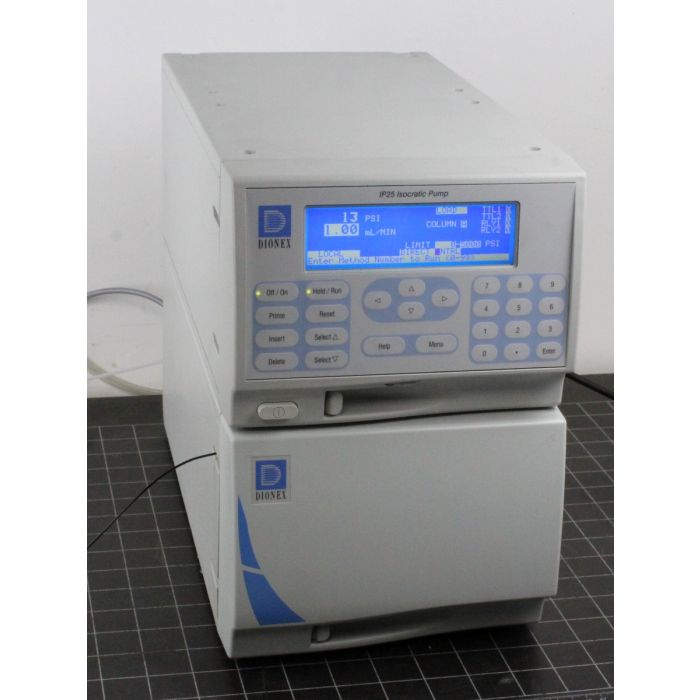

Dionex IP25 Isocratic Pump

Dionex IP25 Isocratic Pump

The IP25 Isocratic Pump is an integral part of a Dionex chromatography system. It is a microprocessor-based, dual-piston, variable-speed, isocratic delivery system designed to pump mobile phase components at precisely controlled flow rates. A Digital Signal Processor (DSP) provides high speed control of pump flow and pressure.
The IP25 can operate as a stand-alone product or with other Dionex modules as part of a complete chromatography system. It can also be used with non-Dionex modules that meet interface requirements for software, TTL, or relay control.

The IP25 can be controlled locally using the front panel keypad and display, or from a remote host computer with a Dionex DX-LAN interface installed and PeakNet software installed on the host computer. Limited remote control is also available from any device capable of providing compatible TTL signals to control the pump.
The pump’s two basic modes of control, Direct control and Method control, enable it to operate with or without reference to time-based events.

Pump: Dual-piston, variable speed, 100 µL stroke; user-selectable constant pressure or constant flow feedback control
Flow Rate: 0.04 to 10.0 mL/min, linearly variable in increments of 0.01 mL/min
Operating Pressure: 35 MPa maximum
Pressure Resolution: 0.07 MPa
High Pressure Limit: 0 to 35 MPa in increments of0.05 MPa; trips instantaneously
Low Pressure Limit: 0 to 35 MPa in increments of 0.05 MPa; trips after a time-out of 0.4 mL
Delay Volume: Approximately 700 µL

Dimensions (H x W x D): 335 x 225 x 420 mm
Weight: 19 kg

Serial# 05020589
