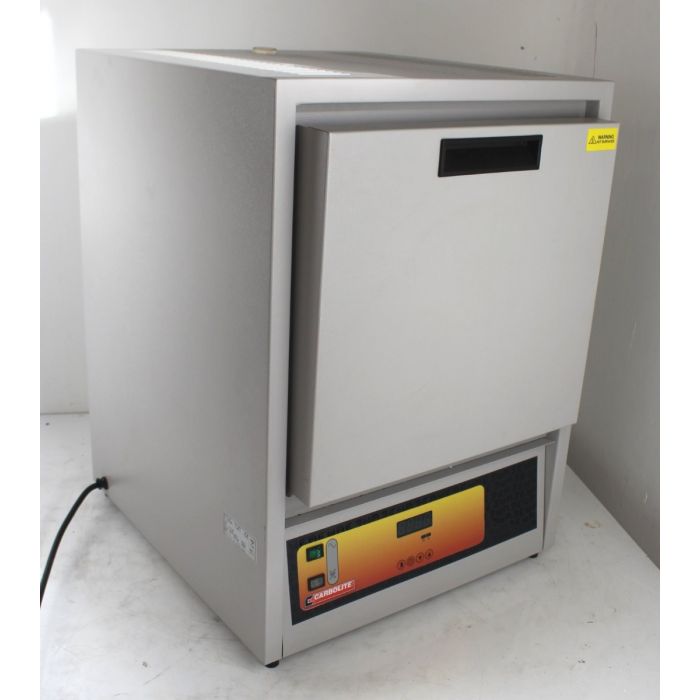

Carbolite ELF 11/14B Economy Chamber Furnace
• 14 litre chamber volume
The ELF laboratory furnaces comprise three bench mounted models designed for light duty and general use up to 1100 °C.
They have a simple drop down door and a top mounted ceramic chimney. The combination of low thermal mass insulation and free radiating wire elements embedded in the chamber sides provide efficient heating.
They have a simple drop down door and a top mounted ceramic chimney. The combination of low thermal mass insulation and free radiating wire elements embedded in the chamber sides provide efficient heating.
Standard features
• 1100 °C maximum operating temperature
• Carbolite Gero 301 controller with single ramp to setpoint and process timer
• Drop down door with air gap to minimise external temperature
• Delayed start / process timer function as standard
• Vacuum formed, low thermal mass insulation • Hard ceramic hearth fitted as standard
• Ventilated via top mounted ceramic chimney
• 1100 °C maximum operating temperature
• Carbolite Gero 301 controller with single ramp to setpoint and process timer
• Drop down door with air gap to minimise external temperature
• Delayed start / process timer function as standard
• Vacuum formed, low thermal mass insulation • Hard ceramic hearth fitted as standard
• Ventilated via top mounted ceramic chimney
Dimensions: Usable chamber H x W x D [mm] 210 x 220 x 310
Dimensions: External H x W x D [mm] 630 x 450 x 520
Max. power [W] 2,600
Dimensions: External H x W x D [mm] 630 x 450 x 520
Max. power [W] 2,600
PDF Manual
Serial# 21=401891
| SKU | N221 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
| Shipping | £60.00 |
