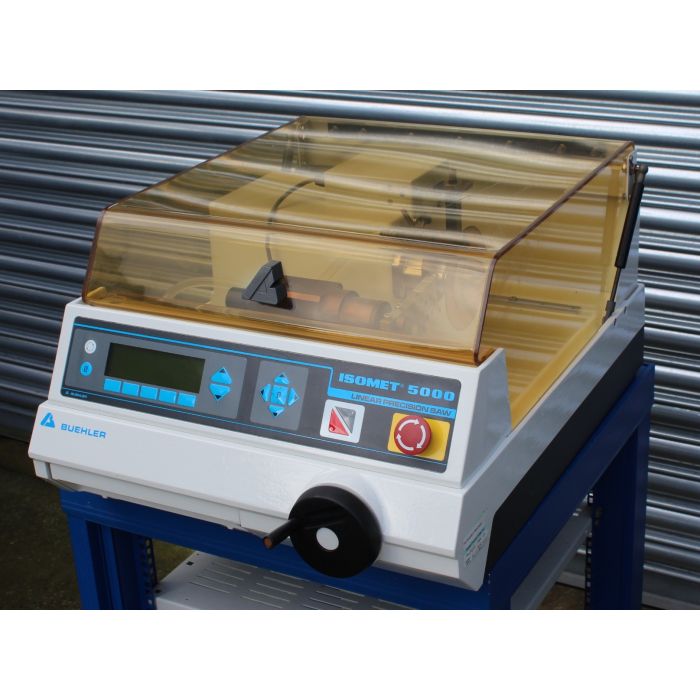

Buehler Isomet 5000 Linear Precision Saw

Buehler Isomet 5000 Linear Precision Saw

Linear Sectioning Saw

2 µm positioning precision
Automatic serial sectioning for multiple cuts
55 method programmability

Expands upon the capabilitiesof the IsoMet 4000 saw by increasing automation
Automatic sample positioningto 2μm via Facia Panel and linear feed advance andretract
55 method programmabilityincreases productivity andsample consistency
Automatic serial sectioningpositions the sample for multiple cuts to a desiredlength and thickness
Cup grinding system providesautomatic grinding to target depth for thin sectionpreparation
Compatible with all IsoMet®4000 accessories and vises

Precision Cutting andVersatility CombinedIsoMet®Family The IsoMet®4000 & 5000 Family of Linear Precision Saws are designed for cutting various types of materialswith minimal sample deformation.
Their compact tabletop design fits onalmost any laboratory table.
TheIsoMet 4000 and 5000 saws give today’s laboratory a precision sectioning tool capable of cutting virtually any material, including brittle and ductile metals, ceramics,composites, cements, laminates,plastics, electronic components and biomaterials.

Features
The front panel consists of a largeeasy-to-read Liquid Crystal Display(LCD) with backlighting, eleven (11)dedicated buttons and an emergency stop button.
In addition, the IsoMet®5000 also features five (5) software/multifunction soft-key buttons.
All buttons have positive-action tactilefeedback.
A built-in coolant pump minimizes sample deformation byreducing heat build-up.
The clearplastic, splash-proof safety shield encloses the entire cutting area to protect the operator,
prevent coolant loss and decrease noise.
Magnetic inter-lock provides safety by preventing accidental operation while the hood is open.
Two externally mounted gas cylinders secure the hood in a raised position when open. Other features include ergonomic design, universal power source and built-in circuit protection.
Easy-to-Use Automatic System
Automatic system allows user to start and walk away - the saw completes the cut without operator assistance
SMARTCUT system automatically monitors and adjusts the feed rate to provide consistent, quality cuts and to prevent specimen andmachine damage, regardless ofthe operator or the material beingsectioned
Automatic blade dessing system
Sealed membrane keypad makes clean up easy

Precise and Durable
automatic 2μm on the IsoMet5000, for precise sectioning allows cutting of delicate speci-mens with minimal deformation(sample size will vary with sample thickness)
Linear feed mechanism
User selectable feed rate allowseven the most delicate samples tobe cut without deformation
Heavy duty aluminum casting provides stable, vibration resistantbase with precision componentsand linear bearings

Power: 85V to 264V, 50/60 Hz
Dims: W55 x D68 x H35 cm
Serial No: 571-IS5S-00222

PDF Manual and Brochure

Supplied with additional ISOCUT Wafering Blade, 11-4263
