Budenberg Deadweight Test Rig 380D


Budenburg Deadweight Test Rig 380D

Proven primary standard

Pressure balances (dead-weight testers) are the most accurate instruments available on the market for the calibration of electronic or mechanical pressure measuring instruments. The direct measurement of the pressure (p= F/A), as well as the use of high-quality materials enable a very small measurement uncertainty, in conjunction with an excellent long-term stability.
The pressure balance (dead-weight tester) has therefore been used for years in factory and calibration laboratories in industry, national institutes and research laboratories

Stand-alone operation

Due to its integrated pressure generation and the pure mechanical measuring principle, the model 380D is ideal for on-site use for maintenance and service

Basic principle

Pressure is defined as the quotient of force and area. The core component of the 380D is therefore a very precisely-manufactured piston-cylinder system, which is loaded with masses in order to generate the individual
test points.
The masses applied are proportional to the target pressure and this is achieved through optimally graduated masses. As standard, these masses are manufactured to the standard gravity (9.80665 m/s²), though they can be adjusted to a specific location and also UKAS calibrated.

Primary standard for calibrating the pressure scale in a hydraulic range up to 1,200 bar

Reference instrument for factory and calibration laboratories for the testing, adjustment and calibration of pressure measuring instruments

Complete, stand-alone system, also suitable for on-site use

Dims (Rig) 39cm (D) x 39cm (W) x 19cm (H)

Standard accuracies to 0.02% of reading

Austenitic, non-magnetic stainless steel weights
Sensitivity and repeatability combined better than 10ppm

Serial# 22165

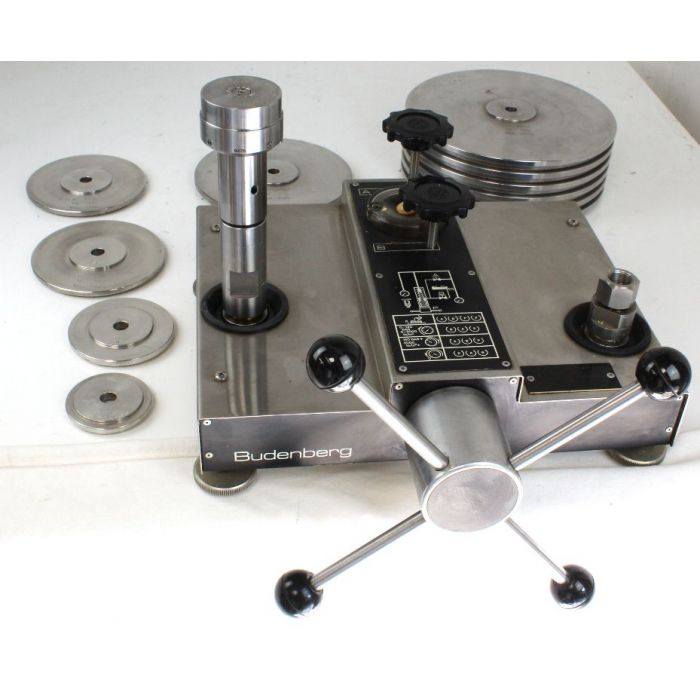

Complete with Stainless weights some shown as per images

6 x 1000lb/in^2
1 x 500lb/in^2
2 x 200lb/in^2
1 x 100lb/in^2
1 x 50lb/in^2

PDF Manual

More Information
SKU H255
Availability Out of Stock
Condition Used
