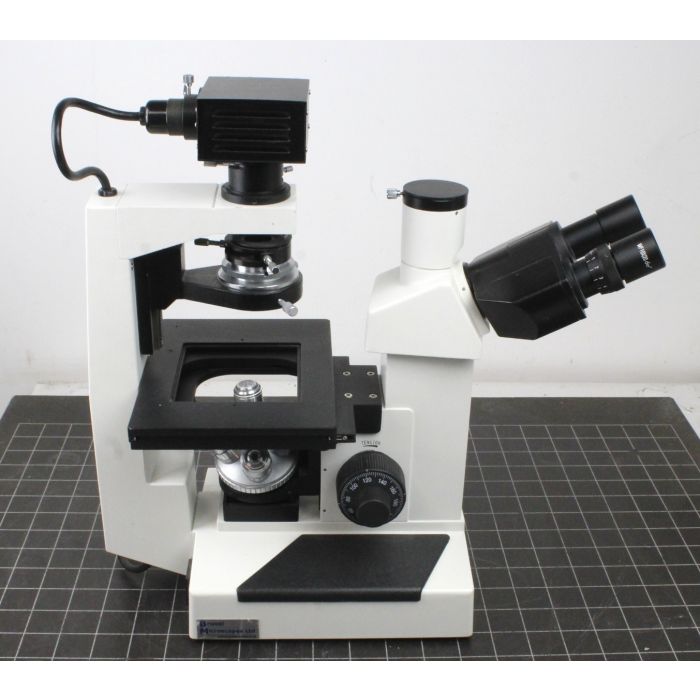

Brunel SP95I Inverted Biological Microscope

Brunel SP95I Inverted Biological Microscope

The Brunel SP95I inverted biological microscope is ideal for cell culture and microbiology examinations of all types. It is a substantial instrument finished to a high standard. The SP95I is equipped with a binocular viewing head and a camera port for digital, 35mm photomicrography, and CCTV. The binocular head has extra widefield x10 eyepieces with full interocular and dioptric adjustment.

High performance, long working distance planachromatic objectives are fitted as standard with a quadruple objective turret. A x10 phase contrast objective with corresponding phase plate and focusing telescope is included as standard.

The specimen stage measures 200 x 155mm, to give inspection ports to suit petri dishes and cell culture equipment. Drop down coaxial movement controls give a traversing distance of 75mm (X axis) and 50mm (Y axis).

The instrument itself has low position coarse and fine focus controls and is finished in two tone black and grey. The condenser system has rack and pinion focus with full centring adjustment, iris diaphragm and slot for phase ring insertion. The illumination system is 6 volt 20 watt rheostat controlled quartz halogen with full lamp centring and focus controls. The unit is fitted with a field iris diaphragm which enables Kohler illumination.

Objective N.A. W.D.

x100 Oil 0.25
x10 phase 0.25 7.9mm
x25 0.40 5mm
x40 0.60 3mm

Serial# 0903504

Note the removable stage plate is missing from this instrument as per images
