Brookfield Ametek Model D Helipath Stand

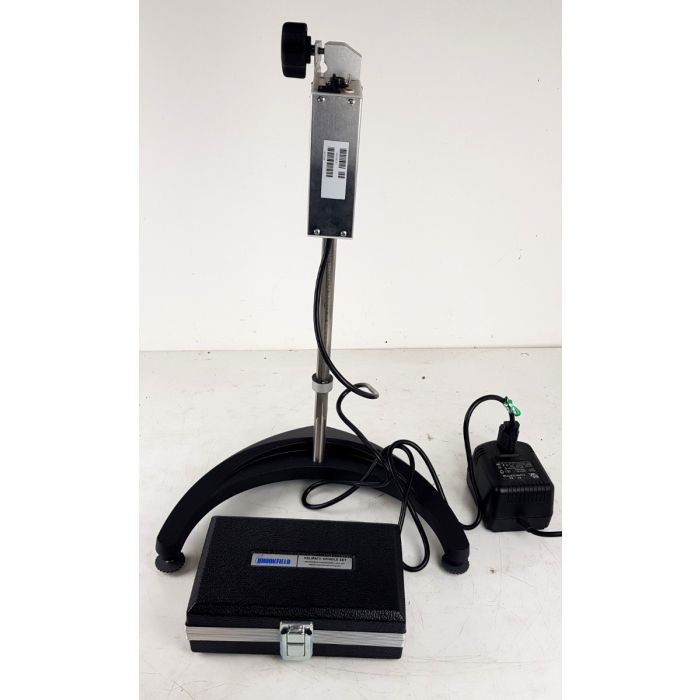

Brookfield Ametek Model D Helipath Stand. With Motor.


Pre owned, appears unused, still in Manufacturers Box.

The Brookfield Ametek Helipath™ Stand is designed to slowly lower or raise a Brookfield Ametek Viscometer/Rheometer so that its rotating T-bar spindle will describe a helical path through the test sample. By always cutting into fresh material, the problem of channeling or separating is eliminated and meaningful viscosity/consistency measurements can be made. The automatic reversing feature of the Helipath™ Stand allows measurements to be made over a variable period of time.The Brookfield Ametek Helipath™ Stand, when used with a suitable Brookfield Ametek Viscometer/Rheometer fitted with a special T-bar type spindle, will permit viscosity/consistency measurements in relative centipoise values for materials having characteristics similar to paste, putty, cream, gelatin, or wax.
Many substances, because of the nature of their yield values, have been considered unsuitable for viscosity or consistency measurements with rotational viscometers. Any rotating spindle, be it cylinder, disc, or paddle, will create a channel in such substances and after a very short time exert a negligible and meaningless torque on any sensing device. This effect also occurs with materials that have a gel structure.

Paint dyes, lithographic inks, and many other substances are thixotropic in that their structure is broken down and their viscosity is decreased when subjected to internal shearing. While no rotating spindle will ever spin freely in such materials, the torque required to produce this motion will become less as the period of internal shearing lengthens. The study of such data can lead to difficulties and require rigid testing procedures for QC.
Other materials, notably pastes and creams, show a combination of the two effects listed above. They will show a yield value as well as a change in relative viscosity/consistency with time.

Main Benefits:

Designed for viscosity/consistency measurement of gels, pastes, creams, putty, gelatin and other non-flowing substances.
A Brookfield Ametek Viscometer or Rheometer is mounted on the Helipath drive motor and a T-bar spindle is attached to the viscometer using a special coupling. The drive motor slowly lowers or raises the viscometer so that the T-bar spindle creates a helical path through the test sample thus eliminating the problem of "channeling".
Compatible with standard Brookfield Ametek Viscometers and DV3T Rheometers
Simple to set up and clean
Provides a solution for hard-to-measure materials.

Serial No: 8671504
Power is 120V, However a 120V to 240V Power Supply is included if required.

More Information
SKU P157
Availability Out of Stock
Condition Used
