BOFA System 250, Portable Fume Extraction Unit

BOFA System 250, Portable Fume Extraction Unit

Electronics Solder extraction and Solvent extraction
Data Sheet;  http://www.farnell.com/datasheets/16931.pdf

The Bofa 250 Fume Extraction System "Dual" extraction unit is purpose built to protect two operators

who are located either next to or opposite each other.

Piping / Ducting not included

Dimensions:          mm H x D x W 480 x 260 x 280
Weight Kg:         10
Flow Rate:         4.5mm I/D Hose 180m3h
Power Unit:         Radial Ventilator
Rated Output kW:    0.12
Voltage#:        230 1ph
Noise Level dBA :    55
Duct Size mm :        75
Duct Run mtrs:        6

Filter Efficiency:    99.997% (Down to 0.3 micron DOP)

Used Filters are fitted, however New filters are available from BOFA:
For Solder Fume Extraction:
A1030102 5 off Pre filters    £13.16
A1030099 Hepa Filter        £96.42

Alternative Solvent Filters are available from BOFA if required

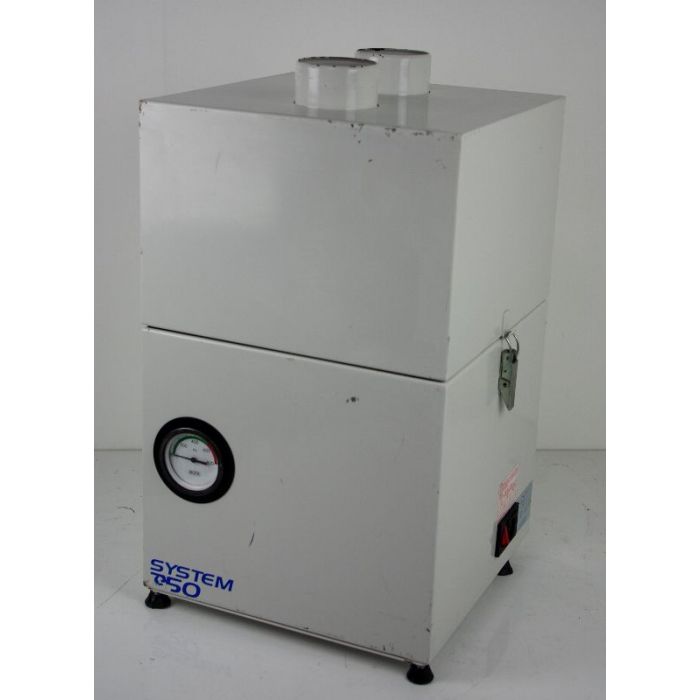

2 Units available, as per images

Serial numbers:
250/341
250/395
