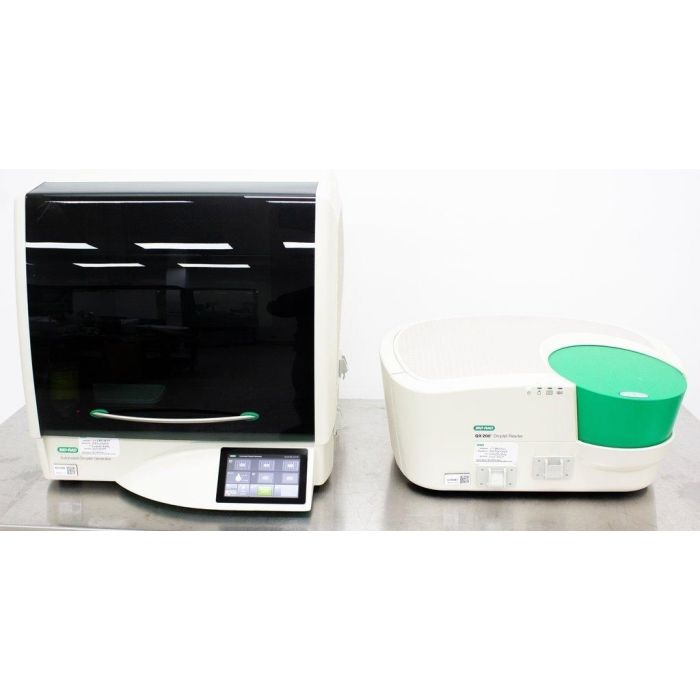

Bio-Rad QX200 Droplet Digital PCR (ddPCR) System

The Bio-Rad QX200 Droplet Digital PCR (ddPCR) System provides absolute quantification of target DNA or RNA molecules without the need for a standard curve. It achieves high sensitivity and precision by partitioning a single sample into approximately 20,000 nanoliter-sized droplets, performing a separate PCR reaction in each

Included

1. Bio-Rad QX200 AutoDG droplet generator

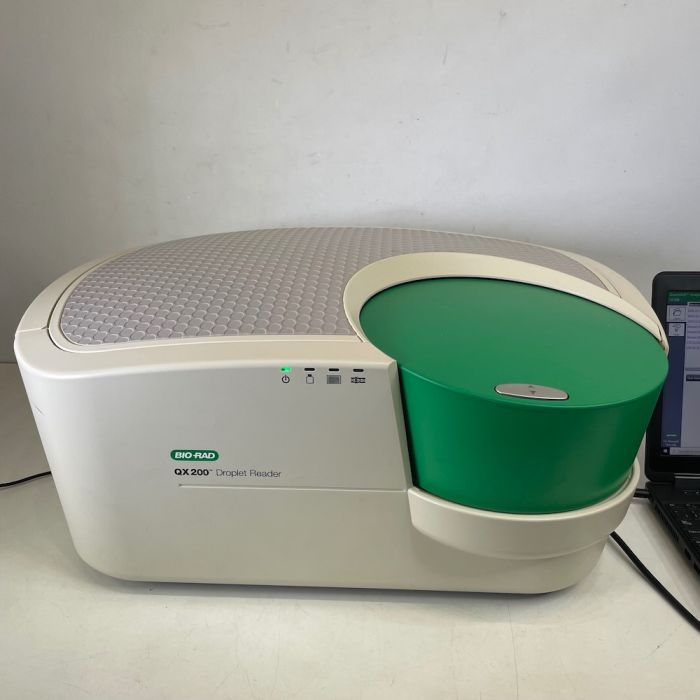

2. Bio-Rad QX200 droplet reader
3. Bio-Rad C-1000 Touch deep well 96 thermal cycler
4. Bio-Rad PX1 PCR plate sealer
5. Laptop with operating software

In good working condition. Stock has only just come in, more info to be posted soon. Please ask details

Specification

• Starting sample size: 20µl
• Droplets per 20 µl sample: 20,000
• QX200 droplet reader capacity: 1 to 96 samples
• Sample illumination: LED
• Sample detection: Multi-pixel photon counter
• Detection channels: FAM (EvaGreen), HEX (VIC)
• Dimensions droplet generator: 28 x 36 x 13cm (w x d x h)
• Dimensions droplet reader: 66 x 52 x 29cm (w x d x h)
