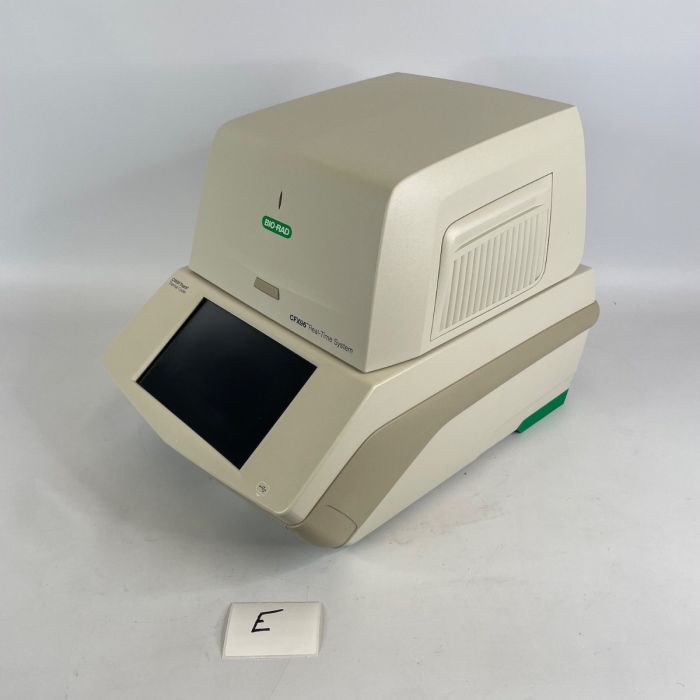

BIO-RAD CFX96 C1000 Touch Real-Time PCR Detection System

BIO-RAD CFX96 C1000 Touch Real-Time PCR Detection System 2020 Model

The CFX96 Touch System is a powerful, precise, and flexible real-time PCR detection system. This six-channel (five colors and one FRET channel) real-time PCR instrument combines advanced optical technology with precise temperature control to deliver sensitive, reliable detection for singlexplex or multiplex reactions.

• Set up your system quickly — easy installation and factory-calibrated optics

• Minimize sample and reagent use — up to 5-target multiplexing with sample volumes as low as 10 µl

• Optimize reactions in a single run — thermal gradient feature

• Analyze data faster — visualize all run data at once and export only the data you need in the format you want

• Use advanced data analysis tools — normalized gene expression using CFX Maestro Software

• Configure the system to fit your needs — run without a computer, run up to 4 systems from 1 computer, or integrate with the CFX Automation System II for higher throughput

• Combine the CFX96 Touch System with good laboratory practice standards — use CFX Maestro Software Security Edition for data collection and analysis to simplify compliance with U.S. FDA 21 CFR Part 11 regulations

This RT-PCR system is in very good working condition and usage log shows activity between August 2020 and March 2022. Images from part of the description.

Specification:

• Chassis: C1000
• Max ramp rate: 5˚C/s
• Heated lid: up to 105˚C
• Temperature range: 0-100˚C
• Temp accuracy: +/-0.2˚C
• Gradient range: 30-100˚C
• Gradient span: 1-24˚C
• Detection excitation: 6 filtered LED’s
• Detection: 6 filtered photodiodes
• Sample capacity: 96
• Sample size: 1-50µl
• Overall dimensions: 33 x 46 x 36cm (w x d x h)
• Weight: 21kg
• Electric supply: 220V 50/60Hz
