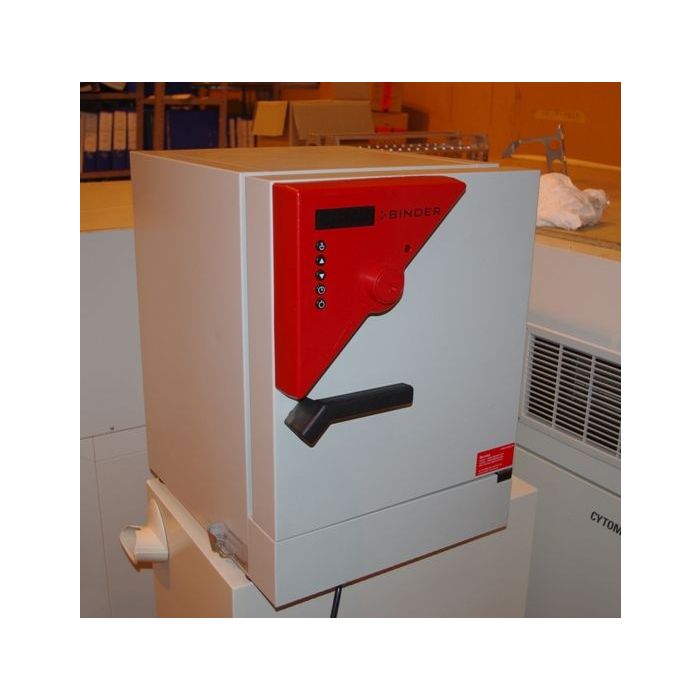

Binder KB23 Cooled Incubator
Binder KB23 Cooling Incubator
Cooled incubator with mechanical convection
The most versatile among the cooled incubators for microorganisms: The BINDER KB series cooled incubator controls temperature ranges of -5 °C to 100 °C. With its comprehensive program functions, this cooled incubator offers a wide range of capabilities and delivers reproducible test results.
Exterior dimensions
Width (mm) 435
Height (incl. feet) (mm) 620
Depth (incl. door handle, I-panel and connection 73 mm) (mm) 600
Wall clearance, rear (mm) 100
Wall clearance, side (mm) 100
Number of doors (ea.) 1
Inner glass door(s) (ea.) 1
Interior dimensions
Width (mm) 222
Height (mm) 330
Depth (mm) 277
Interior volume (l) 20
Racks (number standard/max.) 2 / 3
Load per rack (kg) 10
Permitted total load (kg) 25
Weight (empty) (kg) 44
Temperature data
Temperature range (°C) 1) 0 - 100
Temperature variation
at 5 °C (± K) 0,7
at 25 °C (± K) 0,3
at 40 °C (± K) 0,3
Temperature fluctuation
bei 5 °C (± K) 0,3
bei 25 °C (± K) 0,4
bei 40 °C (± K) 0,1
Recovery time after door was opened for 30 sec 2)
at 5 °C (min.) 5
at 40 °C (min.) 2
Electrical data
IP protection class acc. to EN 60529 IP 20
Voltage (± 10%) 50 / 60 Hz (V) 230, 1 N ~
Nominal power (kW) 0,34
Energy consumption 3)
at 37 °C (W) 60
Noise level (dB (A)) 47
| Features | Customer benefits | Characteristics |
| APT.line™ | Rapid and constant growth of microorganisms | APT.line™ for maximum precision |
| Reliable and reproducable incubation results | ||
| Broad range of applications | Homogeneous temperature distribution even under full load | |
| Tenths of a degree accuracy, precise temperature setting | ||
| Long-term stability | ||
| High standard according to DIN 12880 (27-point measurement) | ||
| Disinfection and cleaning | Simple and fast cleaning | Disinfection routine at 100 °C |
| Maximum occupational safety | ||
| High-quality inner chamber made of stainless steel | ||
| Fully removable elements without bothersome fixtures | ||
| Inner chamber concept | More specimen storage with the same chamber volume | High energy efficiency |
| Minimal operating costs | ||
| Very tight door closure with 2-point door latch | ||
| Low heat dissipation due to 60 mm insulation | ||
| Inner glass door | ||
| Condensation-free inner chamber | ||
| Double door seal | ||
| Door heating | ||
| Cooling system | Reproducible results | Cooling system with large evaporator plates |
| Safe incubation conditions at high ambient temperature | No freezing thanks to double evaporator plate | |
| Flexible use of external devices (e.g. shakers) | Carefully measured cooling up to -5 °C | |
| Control and Documentation | Professional support during validation | Programmable controller with intelligent temperature control and weekly program timer |
| Time and cost savings | FDA-compliant software APT-COM™ | |
| Simple data transfer | Years of proven and recognized validation and documentation materials | |
| FDA-compliant documentation | Standard RS 422 interface for network connection | |
| Accessories and Service | The appropriate BINDER device for every installation site | Wide range of products |
| Broad range of applications | ||
| BINDER INDIVIDUAL for customer-specific solutions | 23 l to 720 l inner chamber with mechanical convection | |
| Worldwide BINDER Service | Additional product lines with humidity, light, CO2 or vacuum | |
| Voltage variants and certificates (UL) | ||
| Various options: Shaker platform, inner chamber socket, access ports, Data Logger Kits | ||
| Worldwide service network | ||
| Condition | New |
|---|---|
| Shipping | N/A |
