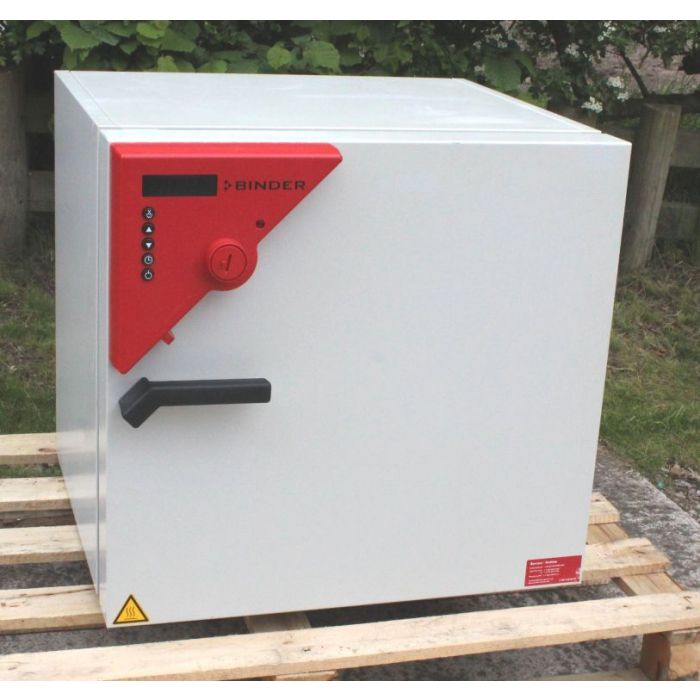

Binder FD53 E2 Drying oven with forced convection

FD series units are primarily used in applications needing rapid drying and sterilization. Totally homogenous temperature distribution, rapid dynamic response, and a special air turbine has 20 % higher output, have made the FD series a genuine time-saving device.

Performance features and equipment:

Electronically controlled APT.line™ preheating chamber assuring temperature accuracy and reproducible results Temperature range 5 °C (9 ºF) above ambient temperature up to 300 °C (572 °F)
DS controller with integrated timer 0 to 99 h
Digital temperature setting with an accuracy of one degree
Independent adjustable temperature safety device class 2, providing full protection against chamber over-temperature, with visual alarm
Adjustable front ventilation flap slide and rear exhaust ø 50 mm (1.97 inch)
2 chrome-plated racks included

Exterior dimensions
Width (mm/inch) 634 / 25.0
Height (inclusive feet/castors) (mm/inch) 617 / 24.3
Depth (mm/inch) 575 / 22.6
plus door handle and exhaust duct (mm/inch) 90 / 3.5
Wall clearance rear (mm/inch) 100 / 3.9
Wall clearance side (mm/inch) 160 / 6.3
Exhaust duct outer- Ø (mm/inch) 52 / 2.1
Steam space volume (l/cu.ft.) 77 / 2.7
Number of doors 1

Interior dimensions
Width (mm/inch) 400 / 15.8
Height (mm/inch) 400 / 15.8
Depth (mm/inch) 330 / 13
Interior volume (l/cu.ft.) 53 / 1.9
Racks, chrome-plated (number standard/max.) 2 / 5
Load per rack (kg/lbs.) 15 / 33
Permitted total load (kg/lbs.) 40 / 88
Weight (empty) (kg/lbs.) 44 / 97

Serial# 11-23654

PDF Manual
