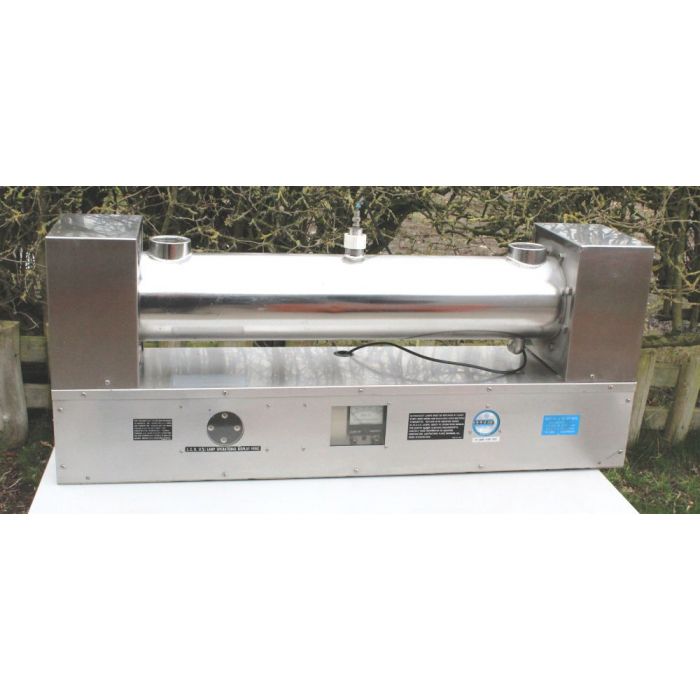

Aquafine CSL-4R, Electronic liquid Sterilizer

PDF Manual

The Aquafine CSL series comes in 2 different versions. The CSL prior to 1999 featured a doubled-ended lamp and sleeve and those after 1999 and the CSL plus series feature a single-ended bi-pin winged lamp and a single end sleeve, This is a single Lamp CSL-4R.
The CSL-4R has been designed to integrate the treatment chamber and electrical enclosure into one unit at 53 gallons per minute.
It features a lamp status indicator and running time meter with a single-ended lamp though with optional remote or UV monitoring options. The updated Plus version uses 4 lamps and sleeves.

THE CSL SERIES
The CSL Series has been designed to offer low pressure UV
technology over a wide range of application flow rates. The
models in this series  combine the electrical enclosure and the
treatment chamber in one integral unit.
The CSL series is the appropriate choice for many treatment
applications, offering a more compact footprint and easy
installation. It includes the critical quality and performance
features that have made Aquafine the standard in UV water
treatment.

KEY FEATURES
316L SS Treatment Chamber
304 SS Control Cabinet
Lamp Status Indicator
Running Time Meter
Sample Ports
Single -ended Lamps (SE)

Power: 220V 50Hz, 1A

Serial No: F010014

Dimensions: D23 x W101 x H45 cm
