Anton Paar DMA35 V4 Portable Density Meter


Anton Paar DMA35 V4 Portable Density Meter

Standard Model (Part number 172244)

Pre Owned, Low hours use only, yr 2020 model.

Anton Paar's DMA 35 Portable Density Meter is used for quality checks in the field. One portable density meter replaces all the glass hydrometers in the workplace with the same accuracy expected from a lab instrument. The DMA 35 series uses only two milliliters of sample and saves the user time as there is no need to transport the sample to the lab. It is built to withstand the knocks and spills of outdoor use. An RFID interface for quick sample identification and a Bluetooth® interface for convenient data handling in the field are integral parts of the instrument.

Note: Used with non-flammable samples in the food, beverage, pharmaceutical and cosmetic industries.

For quality checks in the field, e.g. on wine and wine must (°Brix, °KMW, Oechsle, Baumé)
For checking the wort and apparent extract in beer production (°Plato)
Fast Filling - For a huge variety of samples
Perfect Traceability - For comprehensive data control
Measurements in the Field - For quick reactions
Unbeaten Usability - for measuring challenging samples
Robust Housing, Replaceable Cell - For a long working life

Measuring Range:
Density: 0 g/cm³ to 3 g/cm³
Temperature: 0 °C to 40 °C (32 °F to 104 °F)*
Density: 0.001 g/cm³ **
Temperature: 0.2 °C (0.4 °F)
Repeatability, s.d.***:
Density: 0.0005 g/cm³ **
Temperature: 0.1 °C (0.2 °F)
Density Reproducibility, s.d.***: 0.0007 g/cm³
Digital Resolution:
Density: 0.0001 g/cm³
Temperature: 0.1 °C (0.1 °F)
Ambient Temperature****: -10 °C to +50 °C (14 °F to 122 °F)
Supported Measuring Units:
Specific gravity
Alcohol tables
Sugar/extract tables
API functions
H 2SO 4 tables
Ten programmable custom-specific measuring units
Sample Volume: 2 mL
Dimensions (L x W x H): 245 mm x 103 mm x 126 mm
Data Memory: 1024 measured results, 30 measuring methods, 250 sample IDs
Power Supply: Three 1.5 V LR06 AA alkaline batteries
Weight: 1.45 lbs. (660 g)
Interfaces: Bluetooth®, RFID (both included by default)
Protection Class: IP54 (first digit: 5 – protection against dust ingress; second digit: 4 – protection against splash water from any direction)

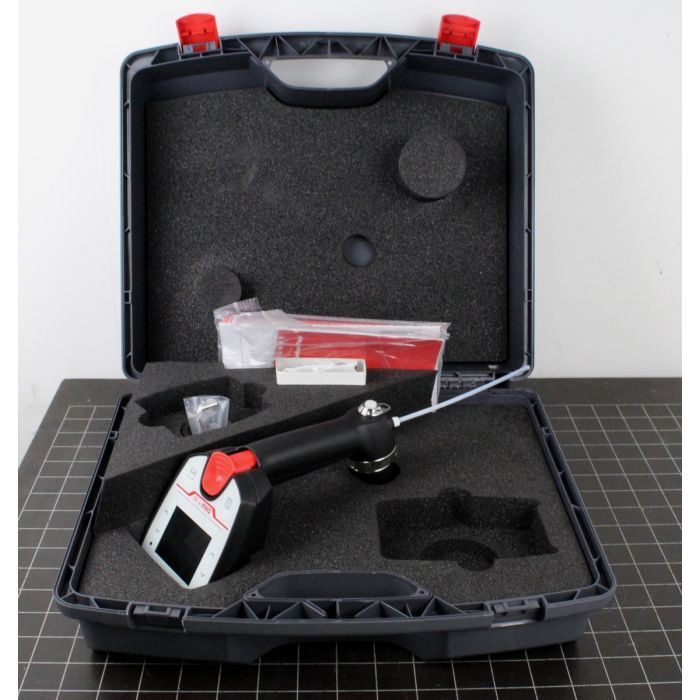

Scope of Supply: Portable density meter, filling tube, adapter for syringe filling, syringes, transportation case, rubber protection for measuring cell, three batteries, Allen key, instructions
Menu Language: English, German, Chinese, Japanese, French, Russian, Italian, Portuguese, Turkish, Spanish

Other Special Functions:
Viscosity correction for reliable measurements, also on highly viscous samples
Gesture control for easy one-handed measurements
Identification of results outside your specified limits
Patents Granted: Smart connection of measuring cell: Patent AT516421 (B1), EP3015847 (B1)

* Measurements up to 100 °C possible
** Viscosity *** According to ISO 5725
**** Sample must not freeze within the measuring cell; Ex and Ex Petrol version: -10 °C to +40 °C (14 °F to 104 °F)

Battery Powered
Serial No: 82518097 with 43 hours use,

More Information
SKU Q159
Availability Out of Stock
Condition Used
