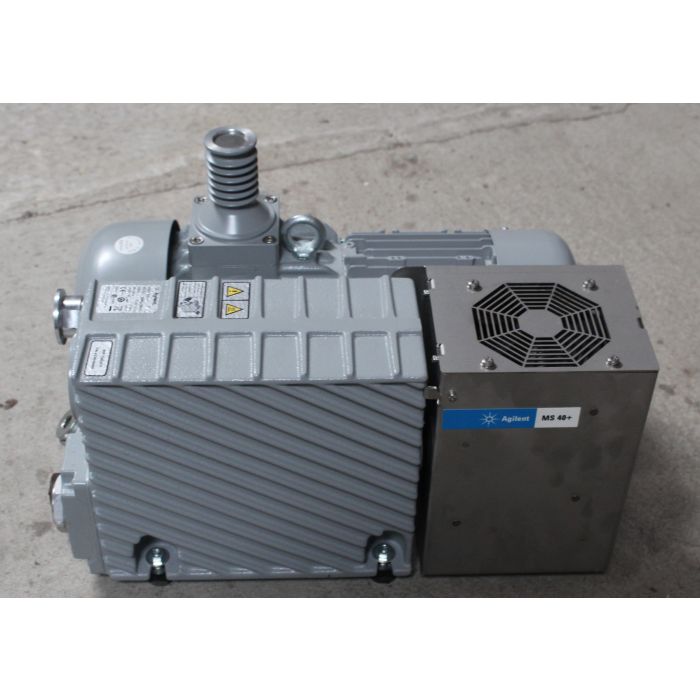

Agilent MS40+RVP Rotary Vane Vacuum Pump

Agilent MS40+RVP Rotary Vane Vacuum Pump

Model 9499225M013 with AVF Platinum Oil

2019 Manufacture date, still in box, we believe possibly unused

The MS40+ is the roughing (foreline) pump of choice for LC/MS and ICP-MS instruments. The MS40+ single-stage, oil-sealed rotary vane pump provides a high pumping speed (40m3/h) in a pump with reduced dimensions. The pump is equipped with an integral exhaust/oil filtration system featuring replaceable exhaust filter elements. This makes this pump suitable for high gas-throughput conditions providing a base pressure of < 5-2 mbar.

High pumping capacity, small footprint
Inverter-driven motor allows speed and pressure adjustment, and reduced power consumption
High pressure stability in the 10-2 mbar pressure range

Dimensions (WxHxL)    298 mm x 266 mm x 419 mm
Exhaust Connection
Height    266 mm
Input Voltage    200-240V, 50/60Hz
Length    419 mm
Noise Level    =62 dBA
Oil Capacity Min/Max    1 L

AVF 60 Gold synthetic pump fluid (Agilent p/n 6040–1444)
Ultimate Partial Pressure    =0.05 mbar
Weight    33 kg
Width    298 mm

Serial# IT19495012

Pdf Manual
