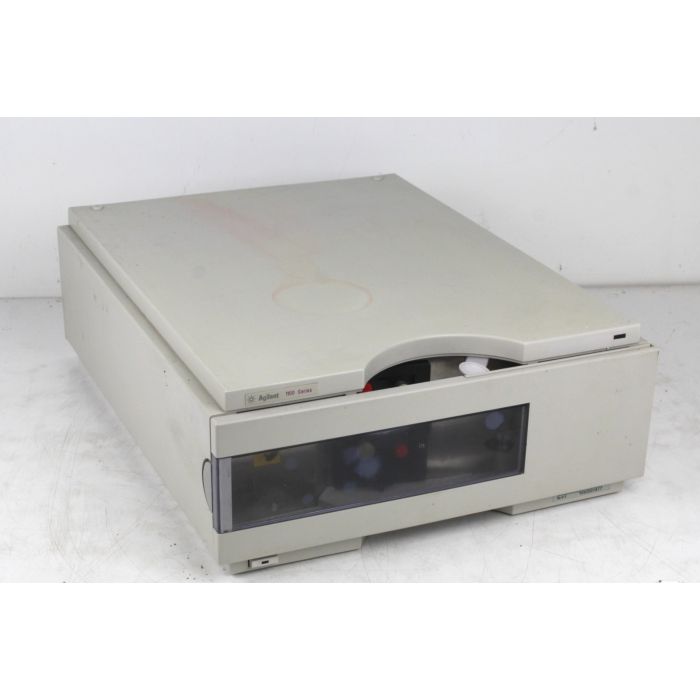

Agilent 1100 Series G1321A FLD Detector


Agilent 1100 Series G1321A FLD Detector

The Agilent 1100 HPLC G1321A Fluorescence Detector brings high-sensitivity and selection through simultaneous multi-wavelength detection. This easy-to-use detector provides quantitative data and fluorescence spectra from a single run. The FD's spectral information can be used for rapid method optimization and verification of separation quality.

Detection type
Multi-signal fluorescence detector with rapid on-line scanning capabilities and spectral data analysis

Performance Specifications
10 fg Anthracene, Ex=250 nm, Em=400 nm*
RAMAN (H2O) > 200 (FLF rev A)
RAMAN (H2O) > 400 (FLF rev >A)
Ex=350 nm, Em=397 nm, dark value 450 nm, standard flow cell time constant=4 seconds (8 seconds response time)

Light source
Xenon Flash Lamp, normal mode 20 W, economy mode 5 W

Pulse frequency
296 Hz for single signal mode, 74 Hz for spectral mode

Excitation monochromator
Range: 200 nm - 700 nm and zero-order
Bandwidth: 20 nm (fixed)
Monochromator:concave holographic grating, F/1.6, blaze: 300 nm

Emission monochromator
Range: 280 nm - 900 nm and zero-order
Bandwidth: 20 nm (fixed)
Monochromator:concave holographic grating, F/1.6, blaze: 400 nm

Reference System in-line excitation measurement
Timetable programming
up to 4 signal wavelengths, response time, PMT Gain, baseline behavior (append, free, zero), spectral parameters

Spectrum acquisition
Excitation or Emission spectra
Scan speed: 28 ms per datapoint (e.g. 0.6 s/spectrum 200-400 nm, 10 nm step)
Step size: 1-20 nm
Spectra storage: All

Wavelength characteristic
Repeatability ±0.2 nm
Accuracy ±3 nm setting

Flow cells
Standard: 8 µl volume and 20 bar (2 MPa) pressure maximum, quartz
Optional: Fluorescence cuvette for offline spectroscopic measurements with 1 ml syringe, 8 µl volume, quartz

Control and data evaluation
Agilent ChemStation for LC, Agilent 1100 Control Module with limited spectral data analysis and printing of spectra

Analog outputs
Recorder/integrator: 100 mV or 1 V, output range >102 luminescence units, two outputs

Controller-area network (CAN), GPIB, RS-232C, LAN, APG
Remote: ready, start, stop and shut-down signals

Safety and Maintenance
Extensive diagnostics, error detection and display (through control module and ChemStation), leak detection, safe leak handling, leak output signal for shutdown of pumping system. Low voltages in major maintenance areas.

GLP Features
Early Maintenance Feedback (EMF) for continuous tracking of instrument usage in terms of lamp burn time with user-settable limits and feedback messages. Electronic records of maintenance and errors. Verification of wavelength accuracy, using the Raman band of water

Housing All materials recyclable

0 to 40 °C constant temperature at <95% humidity (non-condensing)

Dimensions and Weight
140 mm x 345 mm x 435 mm (5.5 x 13.5 x 17 inches) (height x width x depth)
25.5 lbs

Serial# E92001877

pdf manual

Unfortunately this item fails to fully initialise, so we are selling at a spares/repair price, otherwise in excellent physical condition

More Information
SKU P254
Availability Out of Stock
Condition Used
